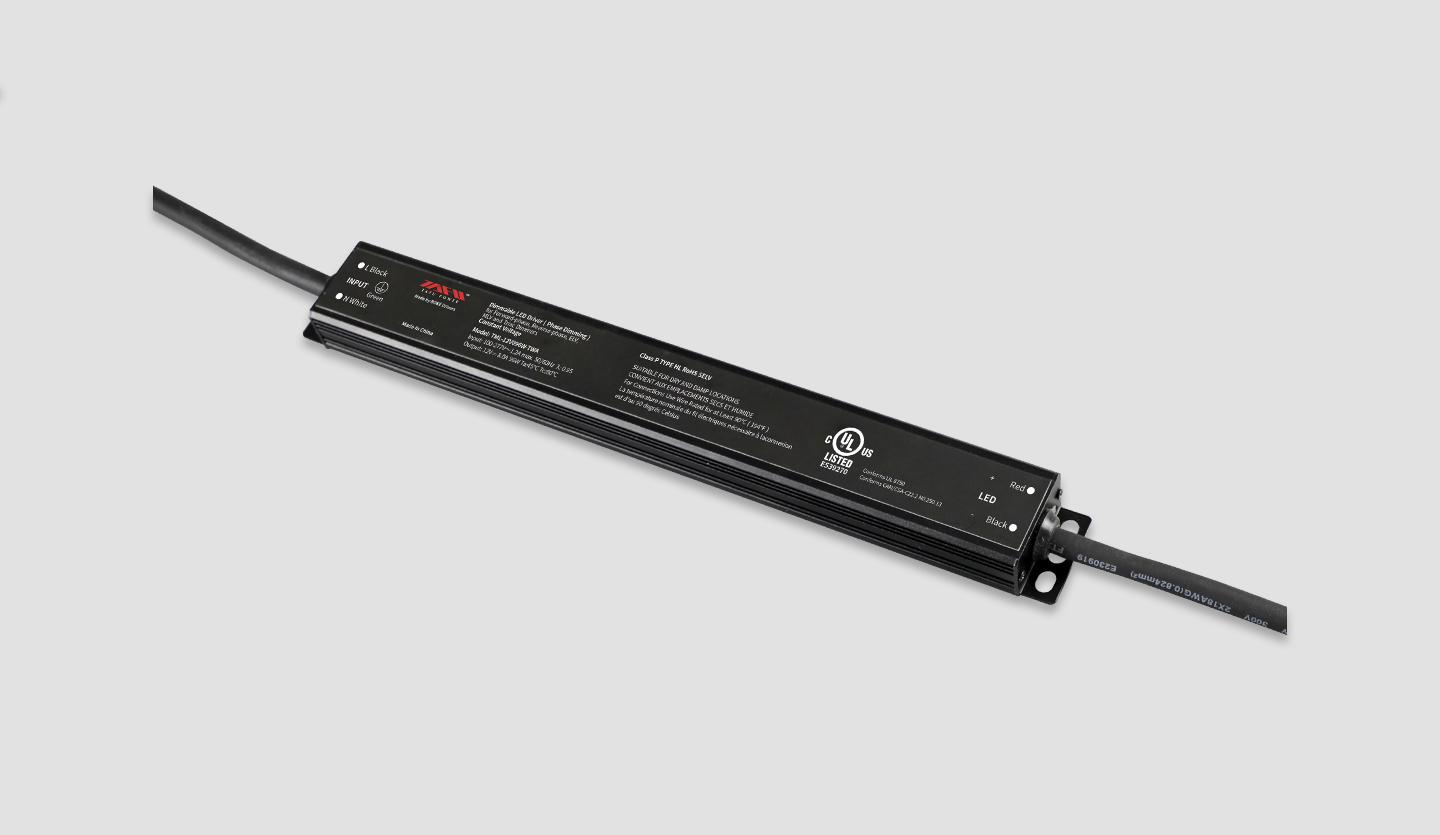

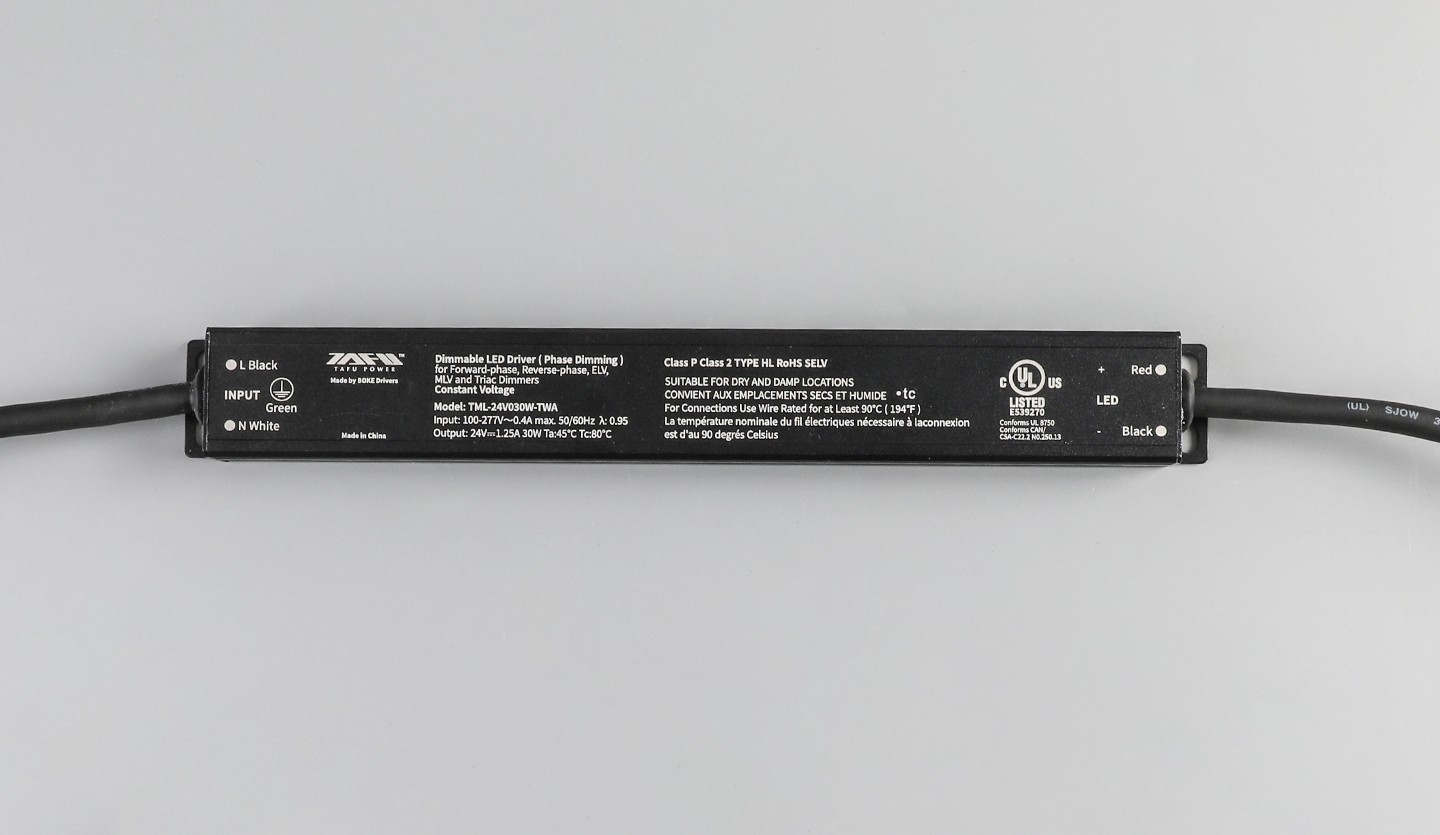

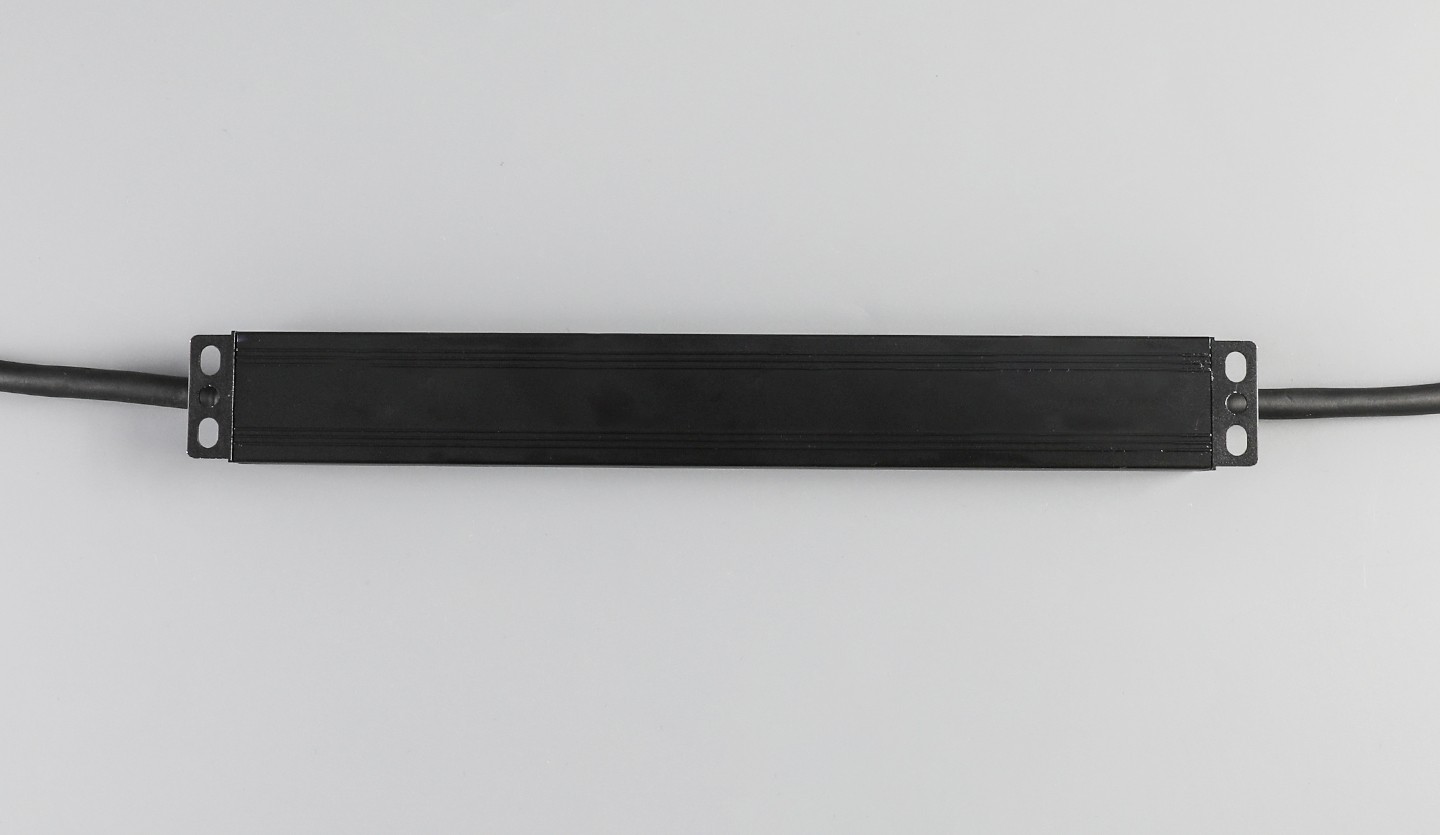

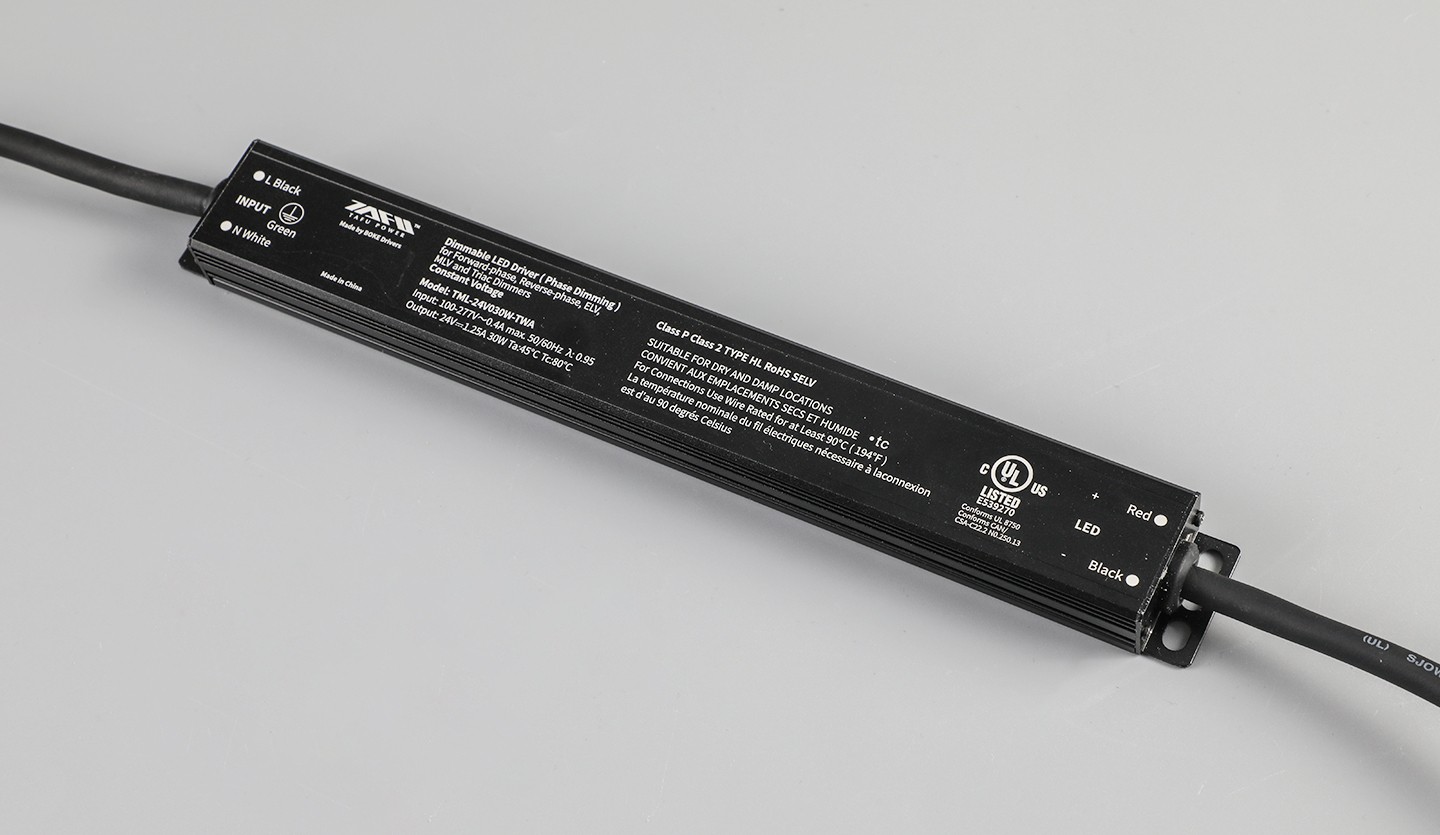

TML Series

Parameters

Part No.	Input Voltage	Output Power	Output Voltage	Output Current	Power Factor	Certificate	Dimension(mm)
TML-12V030W-TWA	100-277VAC	30W MAX.	12VDC	2.5A	>0.95	UL/cUL/FCC/Class 2/ Class P/TYPE HL/RoHS	L240W32.8H24mm [L9.4W1.3H0.9in.]
TML-24V030W-TWA	100-277VAC	30W MAX.	24VDC	1.25A	>0.95	UL/cUL/FCC/Class 2/ Class P/TYPE HL/RoHS	L240W32.8H24mm [L9.4W1.3H0.9in.]
TML-12V060W-TWA	100-277VAC	60W MAX.	12VDC	5A	>0.95	UL/cUL/FCC/Class 2/ Class P/TYPE HL/RoHS	L280W32.8H24mm [L11W1.3H0.9in.]
TML-24V060W-TWA	100-277VAC	60W MAX.	24VDC	2.5A	>0.95	UL/cUL/FCC/Class 2/ Class P/TYPE HL/RoHS	L280W32.8H24mm [L11W1.3H0.9in.]
TML-12V096W-TWA	100-277VAC	96W MAX.	12VDC	8A	>0.95	UL/cUL/FCC/Class P/ TYPE HL/RoHS	L310W32.8H24mm [L12.2W1.3H0.9in.]
TML-24V096W-TWA	100-277VAC	96W MAX.	24VDC	4A	>0.95	UL/cUL/FCC/Class 2/ Class P/TYPE HL/RoHS	L310W32.8H24mm [L12.2W1.3H0.9in.]
