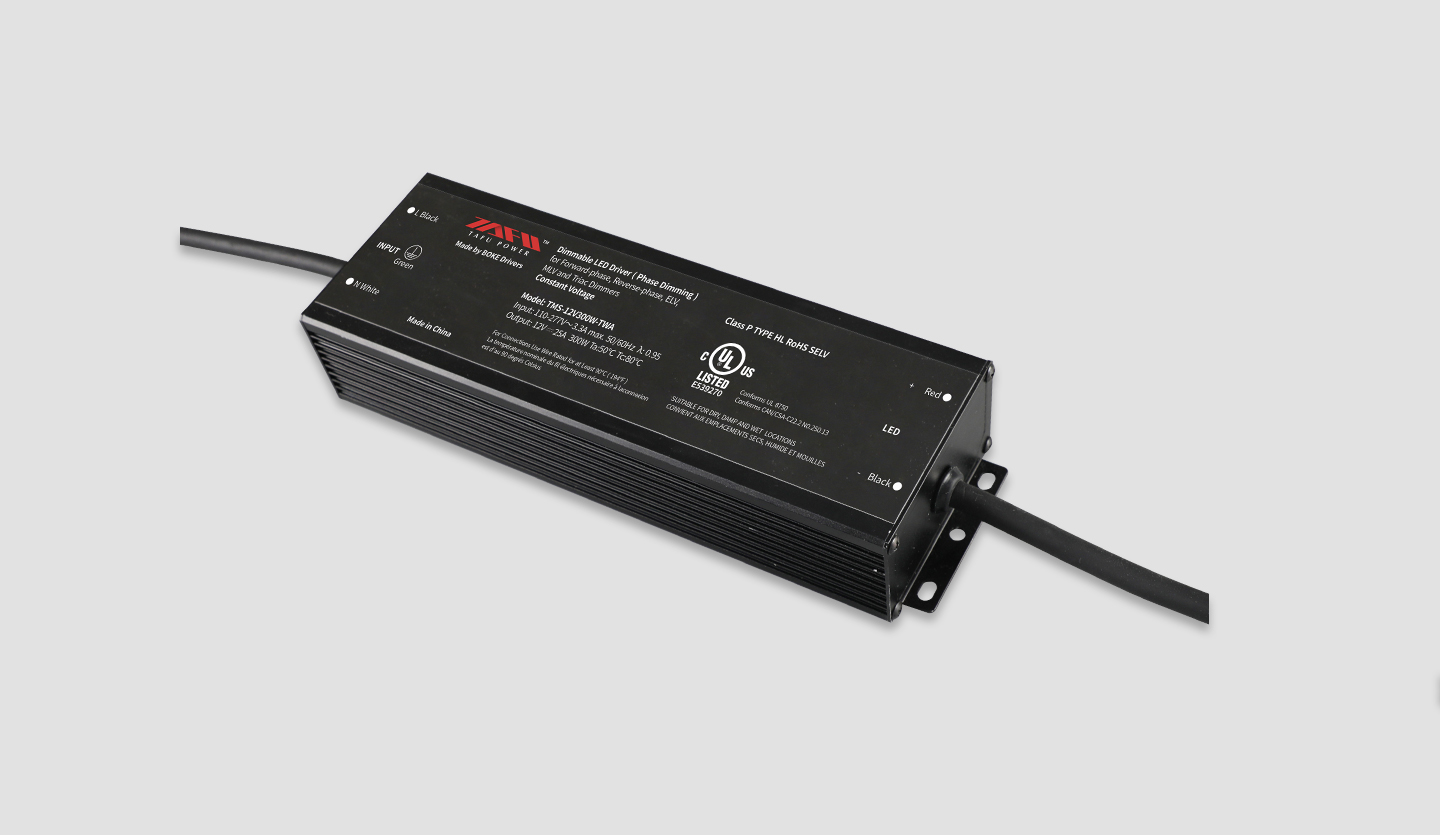

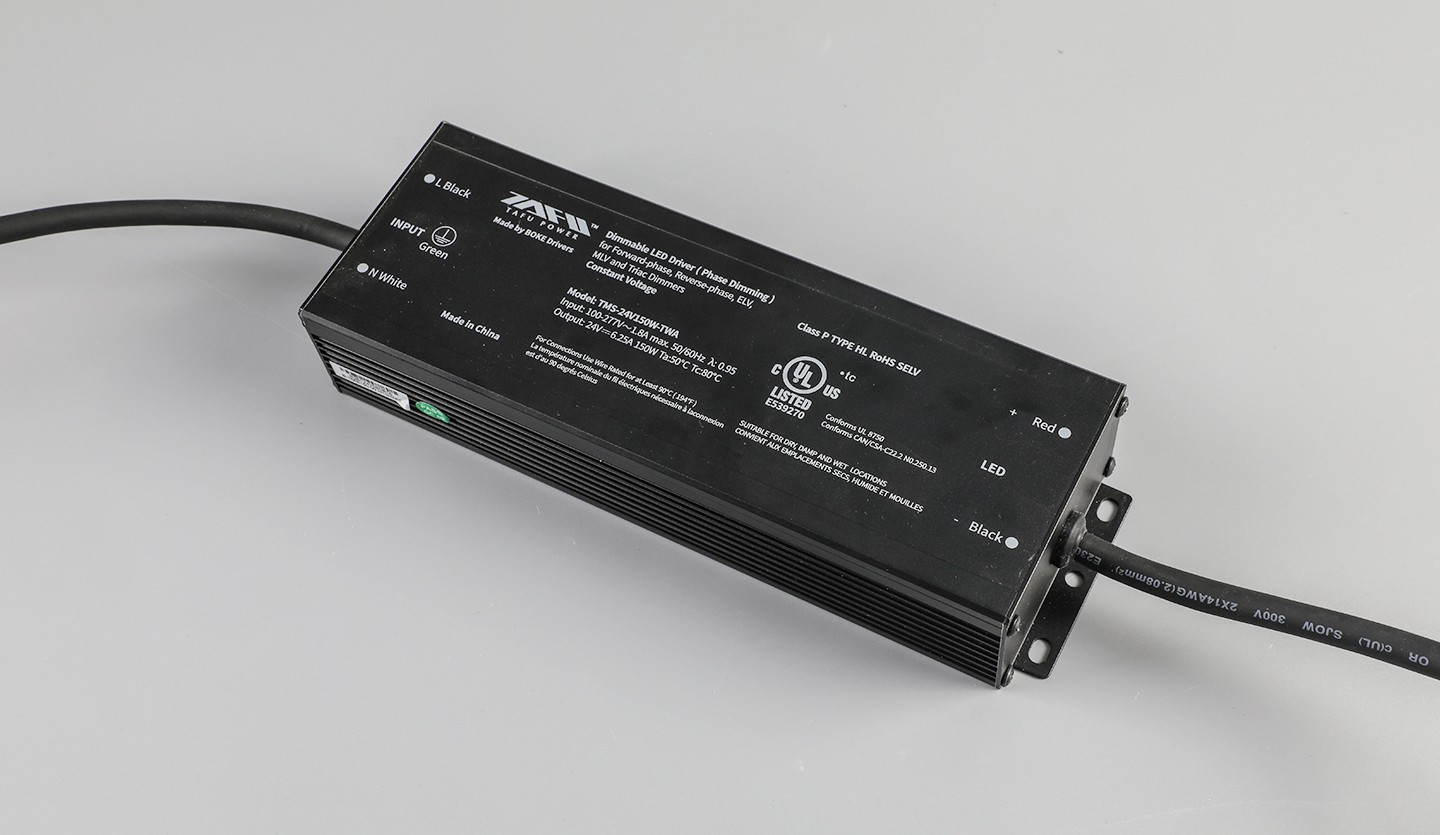

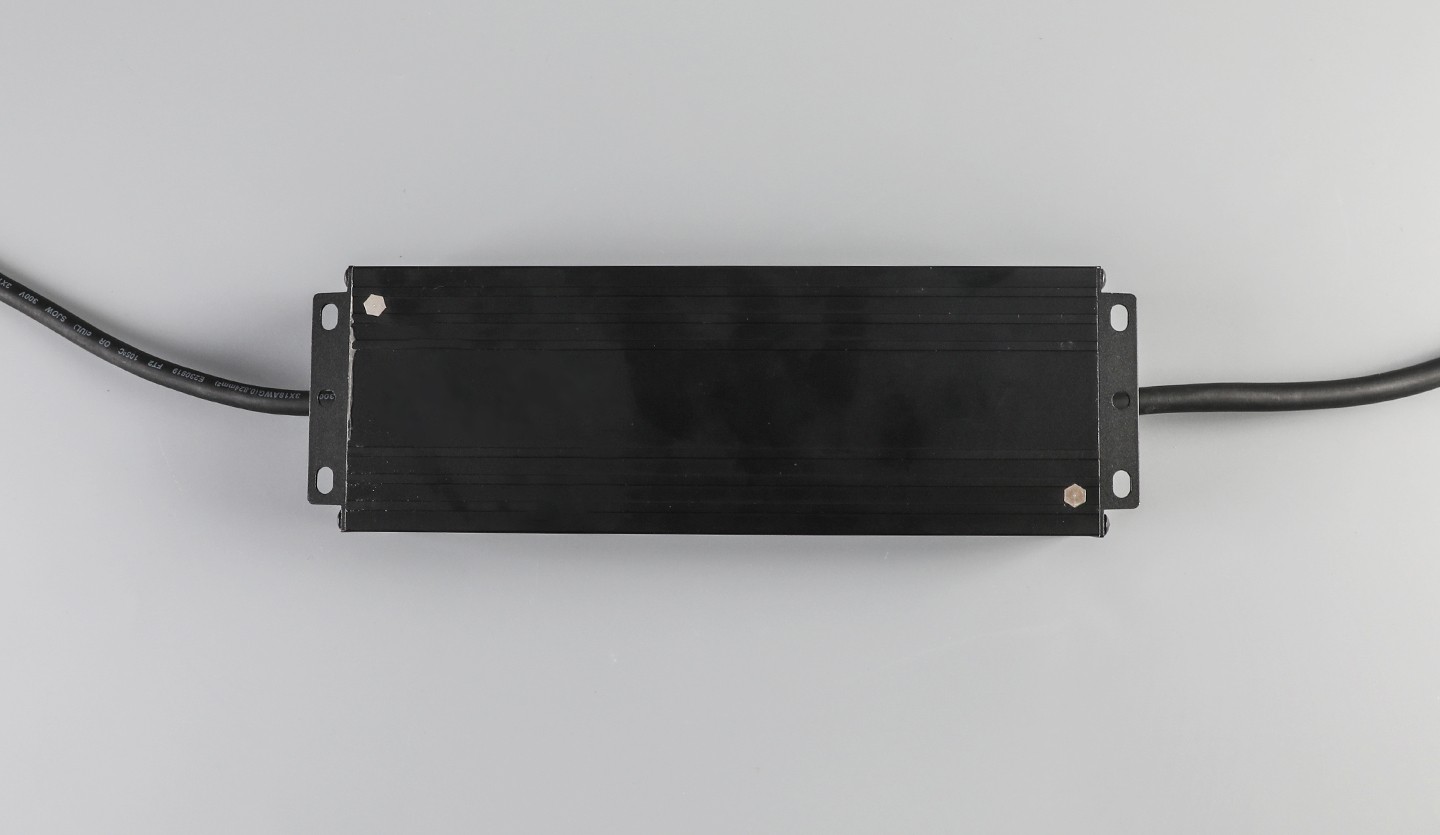

• TMS Series

    TMS Series

    ·Support Forward phase/Reverse phase/ELV/MLV/Triac dimming
    ·Full range input voltage 100-277VAC
    ·Soft dimming and flicker-free at any brightness
    ·Dimming range 0.1~100%,support multiple lights dimming
    ·High PF, high efficiency, low THD
    ·SELV and Class P design
    ·UL certification
    ·Suitable for dry, damp and wet location
    ·Nominal lifetime up to 100,000 h
    ·5-year warranty
  • /upload/images/20240625/20473c95c23d1cd96d73a30d76685ad2.png

Parameters

Part No.Input VoltageOutput PowerOutput VoltageOutput CurrentPower FactorCertificateDimension(mm)

TMS-12V150W-TWA

100-277VAC150W MAX.12VDC12.5A>0.95

UL/cUL/FCC/Class P/

TYPE HL/RoH

L222*W80*H45.5mm

[L8.7*W3.15*H1.8in.]

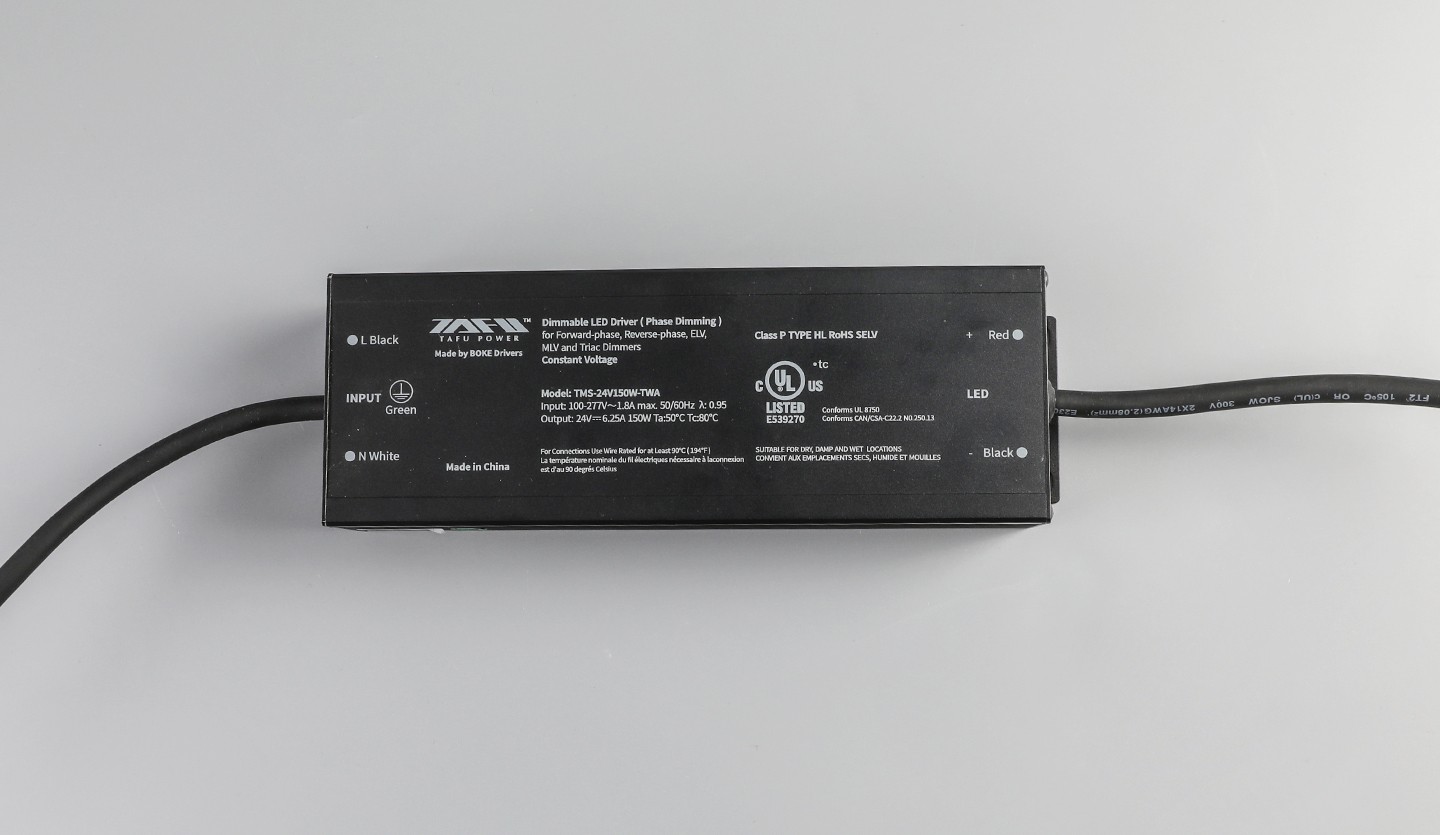

TMS-24V150W-TWA

100-277VAC150W MAX.24VDC

6.25A

>0.95

UL/cUL/FCC/Class P/

TYPE HL/RoHS

L222*W80*H45.5mm

[L8.7*W3.15*H1.8in.]

TMS-48V150W-TWA

100-277VAC150W MAX.48VDC

3.125A

>0.95

UL/cUL/FCC/Class P/

TYPE HL/RoHS

L222*W80*H45.5mm

[L8.7*W3.15*H1.8in.]

TMS-12V300W-TWA

110-277VAC

300W MAX.12VDC

25A

>0.95

UL/cUL/Class P/

TYPE HL/RoHS

L264*W78*H45.5mm

[L10.4*W3.1*H1.8in.]

TMS-24V300W-TWA110-277VAC300W MAX.24VDC12.5A>0.95

UL/cUL/Class P/

TYPE HL/RoHS

L264*W78*H45.5mm

[L10.4*W3.1*H1.8in.]

TMS-48V300W-TWA110-277VAC300W MAX.48VDC6.25A>0.95

UL/cUL/Class P/

TYPE HL/RoHS

L264*W78*H45.5mm

[L10.4*W3.1*H1.8in.]
