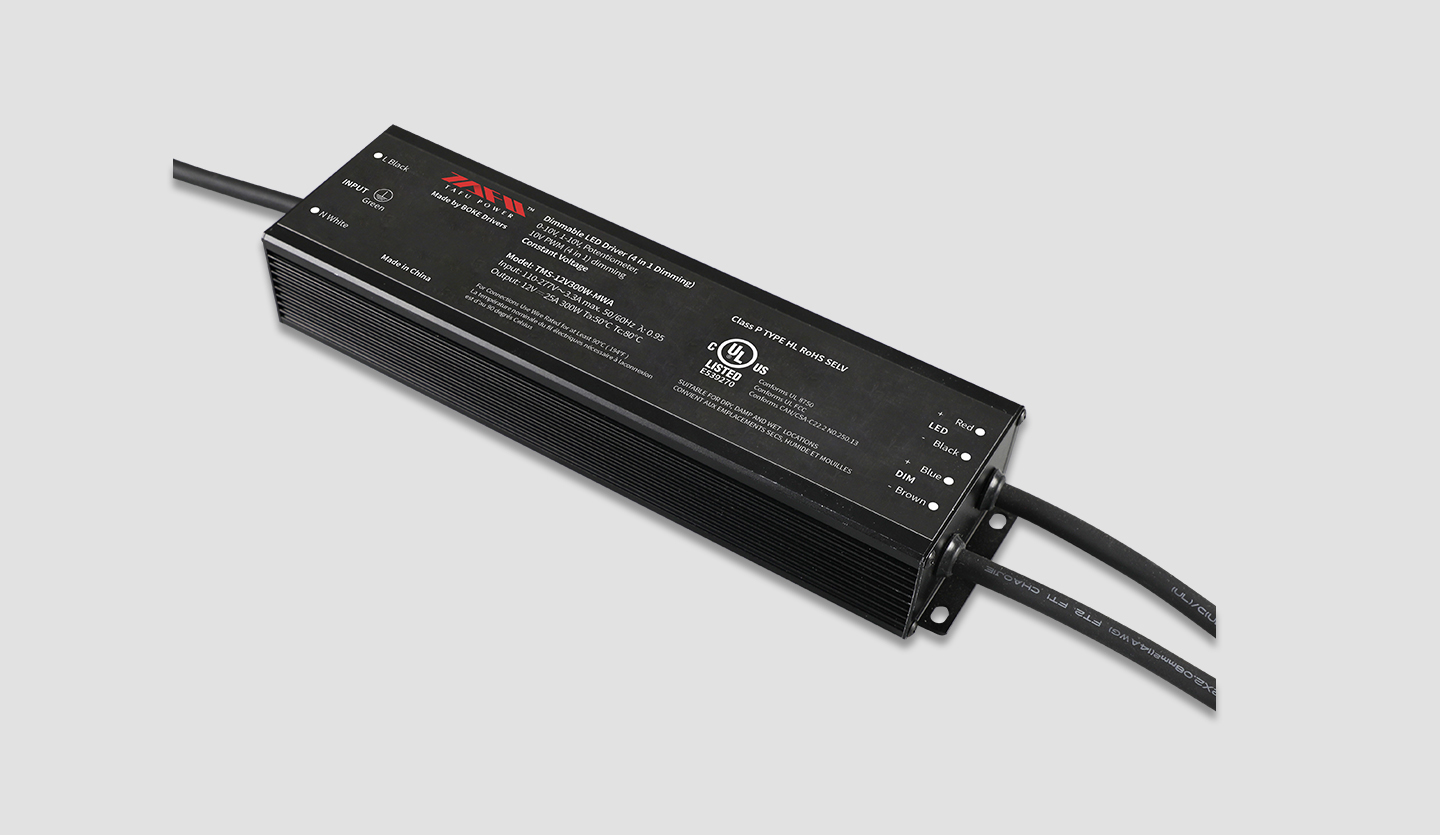

• TMS Series

    TMS Series

    ·Support isolate interface dimming 0-10V/1-10V/10V PWM/Rx dimming
    ·Full range input voltage 100-277VAC
    ·Soft dimming and flicker-free at any brightness
    ·Dimming range 0.1~100%,support multiple lights dimming
    ·High PF, high efficiency, low THD
    ·SELV and Class P design
    ·UL certification
    ·Suitable for dry, damp and wet location
    ·Nominal lifetime up to 100,000 h
    ·5-year warranty
  • /upload/images/20240625/5d83fc441edfb3bdd68306ddb2225138.png

Parameters

Part No.Input VoltageOutput PowerOutput VoltageOutput CurrentPower FactorCertificateDimension(mm)

TMS-12V150W-MWA

100-277VAC150W MAX.12VDC1.25A>0.95

UL/cUL/FCC/Class P/

TYPE HL/RoHS

L222*W80*H45.5mm

[L8.7*W3.15*H1.8in.]

TMS-24V150W-MWA

100-277VAC150W MAX.24VDC6.25A>0.95

UL/cUL/FCC/Class P/

TYPE HL/RoHS

L222*W80*H45.5mm

[L8.7*W3.15*H1.8in.]

TMS-48V150W-MWA100-277VAC

150W MAX.

48VDC3.125A>0.95

UL/cUL/FCC/Class P/

TYPE HL/RoHS

L222*W80*H45.5mm

[L8.7*W3.15*H1.8in.]

TMS-12V300W-MWA

110-277VAC

300W MAX.

12VDC25A>0.95

UL/cUL/Class P/

TYPE HL/RoHS

L264*W78*H45.5mm

[L10.4*W3.1*H1.8in.]

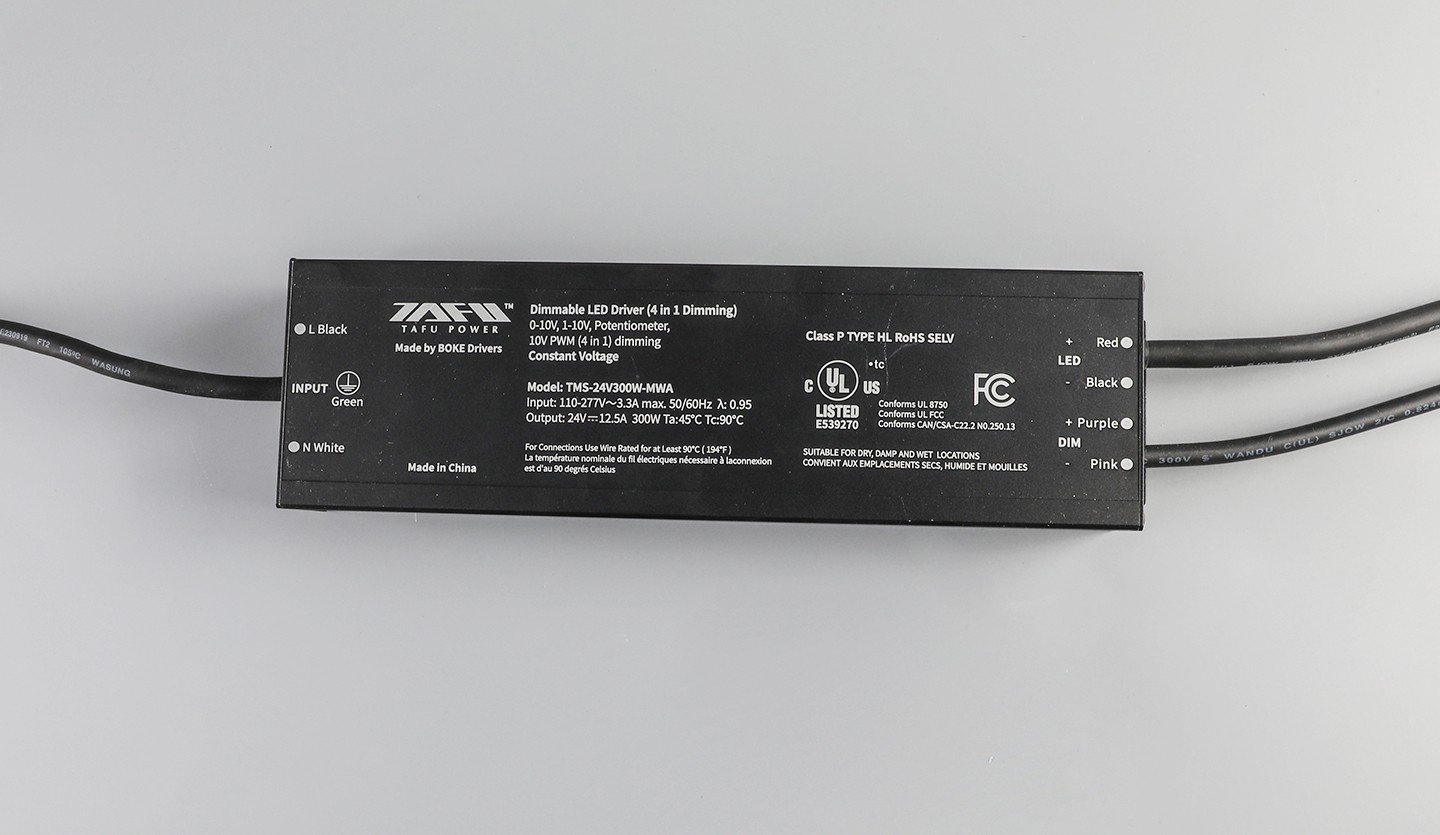

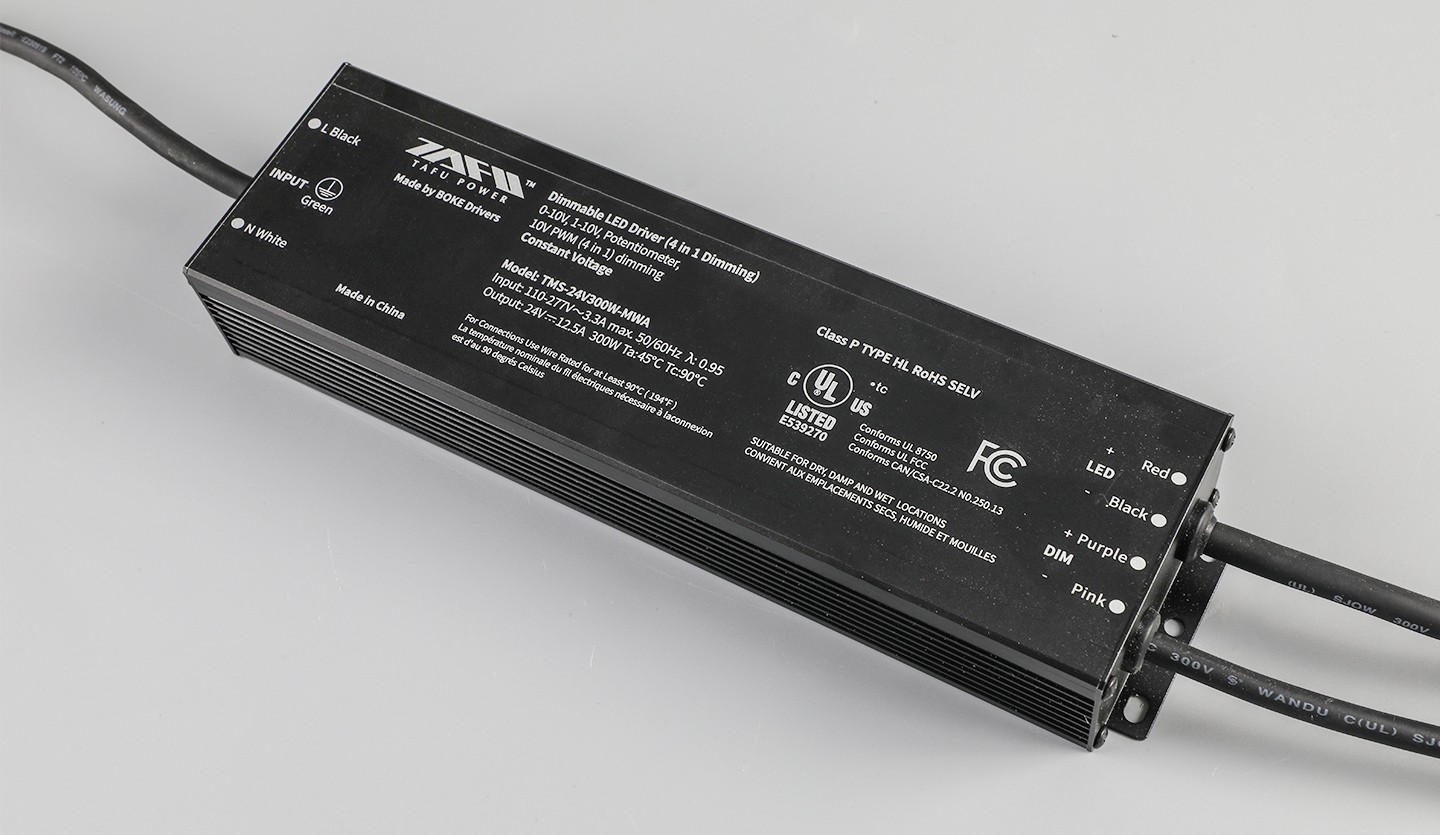

TMS-24V300W-MWA

110-277VAC

300W MAX.

24VDC1.25A>0.95

UL/cUL/Class P/

TYPE HL/RoHS

L264*W78*H45.5mm

[L10.4*W3.1*H1.8in.]

TMS-48V300W-MWA

110-277VAC

300W MAX.

48VDC6.25A>0.95

UL/cUL/Class P/

TYPE HL/RoHS

L264*W78*H45.5mm

[L10.4*W3.1*H1.8in.]
